The best art projector for tracing, for most artists, is the Artograph Inspire 2000 (about $850 at the time of writing), a native 1080p digital projector made for tracing, with auto focus and enough brightness to work in a dimmed room. On a budget, the Artograph LED Tracer (about $100) projects a physical sketch or photo for a fraction of the price, and the Caydo S1 (about $80) does the same for less, as long as you can make the room dark. Prices checked October 17, 2026.
An art projector turns the hardest part of a big painting or mural, getting the drawing onto the surface, in proportion, into tracing an outline. But "art projector" covers two genuinely different machines, and picking the wrong one is the costliest beginner mistake. An opaque projector throws light off a physical photo or sketch, so it's cheap and needs no tech but demands a dark room. A digital (LED) projector beams a file from your phone or an app, so it's brighter, more flexible, and works in a dimmed room. Get the type right and the model almost picks itself. Painting walls rather than canvas? Wall-scale transfer has its own demands (brightness against ambient light, distortion correction from off-center setups), covered in our best projectors for murals guide.
We compared across both types and the practical range, from an $80 optical tracer to a purpose-built digital LED projector for artists, and weighed the things that actually decide whether a trace goes smoothly: brightness in real rooms, throw distance, and how dark you'll have to make the space. Every link goes to Amazon with our affiliate tag; we earn a small commission, at no cost to you, when you buy through us.
Pick Your Projector by Mural Size and Room Light
Every projector question reduces to the same two variables: how big is the surface, and how dark can you get the room while you trace? Image size scales with throw distance, and brightness falls as the image grows, so a bigger mural always demands a darker room. Find your job in the table, then jump to the pick built for it.
| What you are tracing | Room light you can manage | Jump to the pick |
|---|
| A canvas on an easel, from a printed reference or sketch | Fully dark room | Artograph LED Tracer |
| Canvas and wall work every week, from your phone | Dimmed room, blinds pulled | Artograph Inspire 2000 |
| Room-size murals, signs, cakes, and craft surfaces | Dimmed room | Artograph Flare 100 |
| A mural on a client's wall, no outlet nearby | Dark or well-shaded wall | KODAK Luma 150 |
Throw Distance Chart for Every Pick
A digital projector's image width is set by one number, the throw ratio: image width = distance ÷ throw ratio, so distance needed = image width × throw ratio. A 1.2:1 projector 8 ft (96 in) from the wall throws an image 96 ÷ 1.2 = 80 in wide. Where a maker publishes a size range instead of a ratio, we worked from that range. Widths assume a 16:9 image (width = diagonal × 0.87).
| Digital pick | Throw ratio (source) | Width at 6 ft | Width at 8 ft | Width at 10 ft | Distance to fill 4 ft wide | Distance to fill 8 ft wide |
|---|
| Artograph Inspire 2000 | 1.2:1 (Artograph lists 0.87 to 13.1 ft for a 10 to 150 in image) | 60 in | 80 in | 100 in | 4.8 ft | 9.6 ft |
| Artograph Flare 500 | 1.2:1 (retailer spec listings, 10 to 150 in) | 60 in | 80 in | 100 in | 4.8 ft | 9.6 ft |

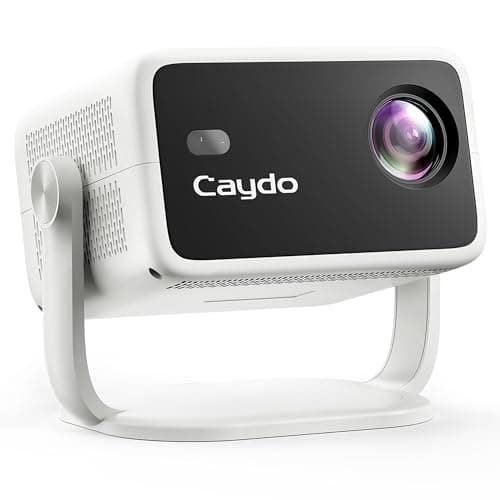

| Caydo P3 | No ratio published; Caydo lists 3.6 ft for 40 in and 8.7 ft for 120 in (35 to 105 in wide), we interpolated | 68 in | 95 in | Past 8.7 ft max | 4.6 ft | 8.1 ft |
| Artograph Flare 100 | Not on a current Artograph page; image 30 to 100 in | Measure it (see below) | Fits (max about 87 in wide) | Cannot, 2 passes |
| KODAK Luma 150 | Not published by Kodak; 60 lumens | Measure it (see below) | Possible, very dim | Too dim to trace |
Opaque and optical tracers do not use a throw ratio. Their ceiling is the copy bed times the maximum enlargement, per the makers:
| Opaque pick | Copy bed | Enlargement | Image width range | 4 ft wide? | 8 ft wide? |
|---|
| Artograph LED Tracer | 5 x 5 in | 2× to 14× | 10 to 70 in | Yes, at 9.6× | No, work in sections |
| Caydo S1 | 5 x 5 in | 2.5× to 11× (Caydo: 20 to 80 in diagonal, 2 to 3 m back) | 12.5 to 55 in | Yes, at 9.6× | No, work in sections |
| Artograph EZ Tracer | 4 x 4 in | 2× to 10× | 8 to 40 in | No, max 40 in | No, work in sections |
For any projector without a published ratio, measure it once: project at a known distance, measure the image width, and divide distance by width. That number holds for every distance after. Sources: Artograph Inspire 2000, Artograph LED Tracer, Artograph EZ Tracer, Caydo S1 and Caydo P3 product pages.
The practical rule for mural size: a few feet of throw fills a canvas, a full garage wall means setting up across the room, and at that distance every compact projector needs the room close to dark. If you cannot control the light, schedule the trace for night, or transfer the design at a smaller scale first. And if the source is a physical drawing you want sharper at scale, digitize it first on a scanner built for artwork, because a clean file projects a far cleaner line than a phone snapshot.
